Solar phot photovoltaic lub tshuab muaj cov khoom siv high-tech uas muab kev txhawb nqa zoo rau lub hnub ci kev lag luam. Hnub ci zog yog ib qho inexhaustible thiab inexhaustibutible zog. Nws yog tus phooj ywg ib puag ncig, tsis tsim cov pa phem ua, thiab muaj cov txiaj ntsig zoo tsis tau. Lub tshuab hluav taws xob rov tshwm sim laminating yog laminating tshuab tau ua cov hnub ci zog thev naus laus zis thiab txuas ntxiv txhawb kev txhim kho ntawm kev lag luam hnub ci.
Solar photheMToltaic Laminating Tshuab muaj ntau yam zoo. Ua ntej, nws tuaj yeem ua tiav kev tsim khoom muaj txiaj ntsig. Vim tias qib siab ntawm kev siv tshuab ntawm cov khoom siv, kev ua haujlwm ntau dua yog ntau. Qhov thib ob, lub hnub ci ntsa iab tsim los ntawm cov khoom muaj qhov zoo ntawm kev ua tau zoo thiab lub neej ntev. Thaum kawg, lub hnub ci ntsa iab tsim los ntawm cov khoom siv tau ruaj khov, qis dua qub kev ua qias tuaj, txuag hluav taws xob, thiab tseem ua tau zoo.
Qinhuangdao shuogu photovoltaic science & technology co. Lub photovoltaii module laminating tshuab tsim los ntawm Qinhunagdao Shuogu tau kis thoob plaws lub ntiaj teb. Peb tuaj yeem siv cov khoom vaj huam sib luag stolar cov khoom siv ntau lawm thiab hnub ci iav likianting tshuab rau cov neeg siv khoom.
Yog tias koj xav paub cov ntaub ntawv ntxiv thov hu rau peb.
Cov khoom lag luam
|
Lub npe |
SOLAR photsovoltaical cell laminating tshuab |
||
|
Tus qauv |
Sgcy-A2446 |
||
|
Laminating thaj chaw (hli) |
2400*4600 |
Qhov loj me ((hli) |
15000*3400*1800 |
|
Rated zog |
70kw |
Nruab Nrab Ua Haujlwm Zog |
Tsawg dua los yog sib npaug rau 35kw |
|
Kev pab fais fab |
AC380V 3Phuas 5 Circuit 50Hz |
Kev Ua Haujlwm Platform |
Kov npo + Plc |
|
Laminating Chamber Qhov Siab |
35 hli |
Compressed cua txaus |
Ntau dua los yog sib npaug rau 400l / min |
|
Roj Hmab Zog |
Ntau dua los yog sib npaug rau 3000 zaug |
Kev sib dhos kub |
Tsawg dua los yog sib npaug ± 2 degree |
|
Lub tshuab nqus tsev |
2x -70+} Zjp600 |
Raug Kev Ntsuas Kub |
± 1 degree |
|
Kev Pabcuam Lub Neej |
Ntau dua los yog sib npaug rau 10 xyoo |
Siv tus nqi siv |
Ntau dua los yog sib npaug rau 98% |
Tshuab qauv thiab muaj peev xwm
A: Cov tshuab laminating Adints lub iav Tsav + zaus Tswj kom ceev system rau kev ua haujlwm zoo. Kev rov ua haujlwm ua qhov tseeb yog tsis pub dhau ± 10mm.
B: Synchronous iav tsim ua rau sab sauv thiab qis dua cov dej kub ntawm cov kab ke ib txwm txav synchronously.
C: Ib txoj kev nyab xeeb ntawm huab cua nyab xeeb yog tsim los tiv thaiv lub caij nplooj zeeg ntawm lub thawv sab sauv vim muaj xwm txheej tshwm sim: fais fab hluav taws xob lossis cua yeeb nkawj tawg.
D: Lub tshuab nqus tsev tag nrho (pneumatic), thaum khiav ceev, yog kuj tau nruab nrog lub zog tsis tau npaj tseg ntawm lub tshuab kom txo qis kev ua txhaum.

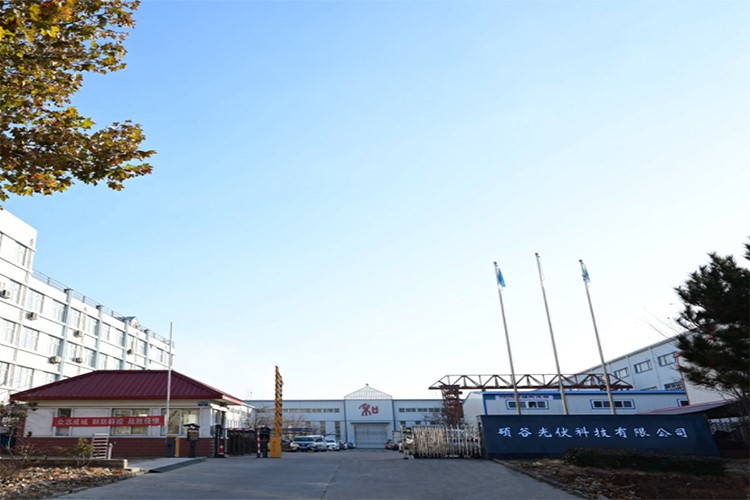

Txog Peb
Cov FAQ
Q1: Koj yog leej twg?
A: Peb nyob hauv Qinhuangdao, Suav. Peb tau cog lus los muab ntau yam khoom siv photovoltic thiab tsim cov kws tshaj lij solar cov kab ntau lawm.
Q2: Koj tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua rau kev kuaj xyuas nruj me ntsis thiab kuaj ua ntej kev xa khoom; Thiab peb kuj lees txais cov kev kuaj xyuas sab nraud los ntawm cov khoom lag luam thib peb ua ntej cov zaub mov xa tuaj.
Q3: Yuav ua li cas yog tias peb siv tsis tau lub tshuab?
A: Peb tuaj yeem muab phau ntawv qhia ua haujlwm, thiab yuav qhia koj cov neeg ua haujlwm lub tshuab
Q4: Txoj kev them nyiaj yog dab tsi?
A: T/T.
Ntim thiab xa khoom
A: Lub sijhawm xa khoom:
Nyob ib ncig ntawm 45 ~ 90 hnub tom qab tau txais cov nyiaj ua ntej.
B: Zoo lees paub: 1 xyoo
Cov tswv lag luam thiab tu ntawm txhua cov khoom siv yog English.
Tiv Tauj Peb
Cim npe nrov: SOLAR photsovoltaical cell laminating tshuab
